Why Parking Structures Are the Harshest Environment for Concrete
Parking garage epoxy in Toronto faces a uniquely punishing combination of de-icing salts, freeze-thaw cycles, and heavy vehicle traffic that no other environment replicates. Toronto makes it significantly worse. Understanding the specific failure modes is what lets us specify the right protective system — not just the cheapest coating.
The primary chemical threat is chloride ion penetration from road de-icing salts. Toronto's winter road treatment program is among the most aggressive in North America. Vehicles drive chloride-laden slush into parkades and deposit it directly on the concrete surface. Chlorides are small enough to migrate through the concrete matrix to the reinforcing steel below, where they initiate corrosion. Corroding rebar expands and spalls the concrete from within — a progressive structural failure that costs vastly more to repair than a protective coating costs to install.
The secondary threat is freeze-thaw cycling. Toronto averages over 60 freeze-thaw cycles per winter. Water that has infiltrated concrete through surface cracks or a failed coating expands on freezing and mechanically fractures the concrete. In a parkade deck exposed to weather, this cycle is relentless. Combined with the thermal contraction and expansion stresses of the deck itself, it produces progressive crack propagation that a protective coating system must be designed to accommodate — not just sit on top of.
Vehicle fluids add a third threat layer: oil, hydraulic fluid, fuel, and anti-freeze all penetrate bare concrete rapidly and compromise any coating bonded over a contaminated substrate. Degreasing and surface preparation in parking structures requires more extensive work than most environments.
Parking Garage Coating System Types
Not every parking structure needs the same system. We specify based on the structure type, exposure conditions, and client requirements:
Traffic Deck Coating (Interior Parkades)
For interior parking levels not exposed directly to weather, a reinforced epoxy or polyurethane traffic deck coating provides the core protection. These systems are applied at 30–40 mils total film build — significantly thicker than a standard floor coating — and incorporate fibreglass mesh reinforcement over cracks and joints. The system seals the concrete against chloride infiltration, vehicle fluids, and abrasion. Applied in multiple coats with a broadcast aggregate topcoat for anti-slip performance and a coloured polyurethane wearing surface for durability and cleanability.
Waterproof Membrane System (Exposed Roof Decks)
Exposed parking deck surfaces — roof levels and open-air structures — require a flexible waterproof membrane, not just a coating. We install polyurethane membrane systems that are specifically designed for exposed concrete decks. These systems can accommodate thermal movement and crack cycling without fracturing, which a rigid epoxy coating cannot. The membrane is installed over a primer, reinforced at all cracks and joints with membrane tape, and finished with an anti-slip aggregate broadcast and a UV-stable polyurethane wearing coat. These systems carry a 10-year waterproofing warranty on material and installation.

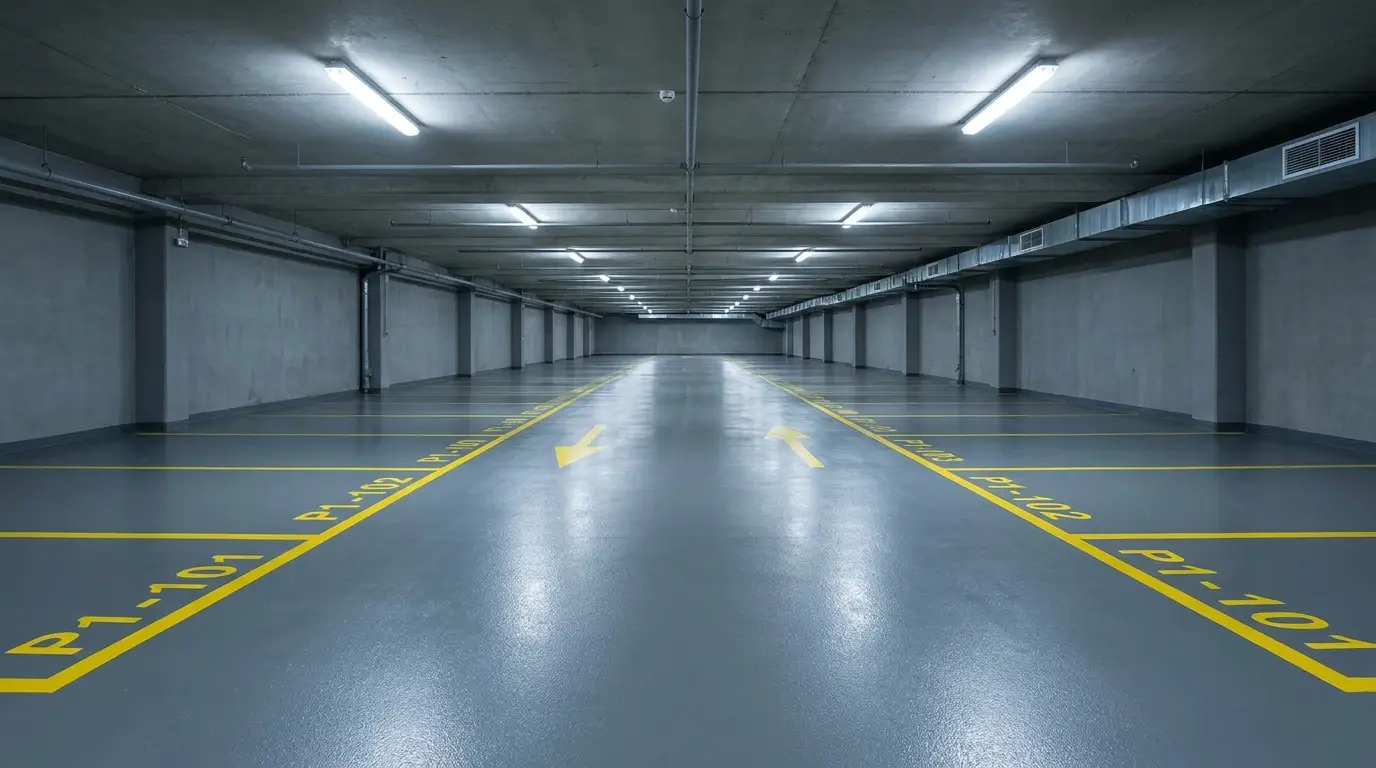

Line Marking and Traffic Delineation
Clear, high-visibility line marking is both a safety and operational requirement for parking structures. We use two-component polyurethane or epoxy line paint applied over the cured traffic deck system — never single-component acrylic, which wears quickly under tire scrub. Standard parking stall lines (4" width), directional arrows, pedestrian crosswalks, fire lanes, disabled stall markings (to Ontario standards), and wheel stop positioning are all within our scope.
Anti-Slip Surface Treatment
Parking decks are wet most of Toronto's year — rain, snowmelt, and brought-in moisture from vehicles. Smooth traffic deck coatings become dangerously slippery when wet. We broadcast aluminium oxide or flint aggregate into the wearing course at broadcast rates that deliver a minimum SCOF (Static Coefficient of Friction) of 0.5 wet, which meets OBC requirements for public parking surfaces. For pedestrian walkways and ramps within the structure, we can specify higher broadcast rates for additional traction.
Safety Features Built Into Every Parkade Installation
- High-visibility line marking: Traffic yellow stall lines, directional flow arrows, pedestrian crossings, and fire lane delineation applied at correct dimensions to OBC standards.
- Anti-slip aggregate broadcast: Aluminium oxide broadcast delivers SCOF >0.5 wet across all traffic areas and ramps.
- Coved drain areas: Deck-to-drain transitions sealed with flexible sealant to prevent water infiltration at the most vulnerable joint.
- Crack bridging reinforcement: Fibreglass mat embedded over all existing cracks at the primer stage to prevent crack reflection through the new coating system.
- Reflective marking on columns and overhead clearance bars: Retroreflective tape or paint on structural elements improves visibility in low-light conditions.
Ontario Building Code and Parking Structure Considerations
Parking structures in Ontario are governed by the Ontario Building Code (Part 3 — Large Buildings) and various supplementary standards including CSA S413 (Parking Structures) for structural design considerations. Our coating and waterproofing installations are executed to the relevant sections of these standards, including slope requirements for drainage (minimum 1.5% to drains), slip resistance thresholds for pedestrian areas, and fire compartment considerations that affect where expansion joints must be sealed.
For condominium parkades and commercial structures subject to property management requirements, we provide full documentation of the installed system — product data sheets, application records, and warranty certificates — for inclusion in the building's maintenance records. This documentation is increasingly required for building condition assessments and reserve fund studies.
Phased Installation: Keeping Your Parkade Operational
Most parking structures can't simply close for a week while coating work is completed. Whether it's a condominium parkade where residents need access, or a commercial structure tied to retail or office tenant obligations, operational continuity is a real project constraint.
Our standard approach for occupied parkades is to divide the floor into two to four phases, coating one phase at a time while the remaining sections stay operational. Traffic is rerouted with temporary signage and barricades. Each phase requires 24 hours of cure time before vehicle traffic can return, so a well-organized phased project can complete a full parkade level with essentially no days where the entire floor is inaccessible.
We schedule heavy work — grinding, shot blasting — during low-traffic periods, typically evenings and weekends, to minimize noise and vibration impacts on building occupants and businesses.
Case Study: Mid-Size Condominium Parkade, North York
A 180-unit condominium tower in North York engaged us to restore and protect two levels of underground parking totalling approximately 42,000 square feet. The concrete was showing significant chloride staining, surface spalling at ramp edges, and failed line markings across both levels. The building was fully occupied with 180 parking spots in regular use.
We conducted a full condition assessment including chloride penetration testing at five locations per level, concrete core analysis, and drain condition inspection before specifying the system. The lower level, which had more direct water exposure from the ramp, received a full polyurethane traffic deck membrane system. The upper level, with better drainage and lower moisture exposure, received a reinforced epoxy traffic deck coating at lower cost.
Installation was completed in eight phases over four weeks, with no more than 45 spots unavailable at any time. New line marking, directional arrows, visitor stall delineation, and fire lane striping were applied to both levels on completion. The project included a 10-year waterproofing warranty on the lower level and a 5-year system warranty on the upper level.
Parking Garage Epoxy Cost in Toronto
Traffic deck coating systems for interior parking levels typically range from $3–$5 per square foot, depending on the extent of concrete repair required before coating, the system specification, and the project logistics involved. Exposed deck waterproof membrane systems run $5–$8 per square foot given the more complex system and longer installation process. Line marking is typically priced separately at $0.50–$1.50 per linear foot depending on marking type.
We provide detailed written proposals for all commercial parking projects, including a condition assessment summary, system specification, and phased installation plan before any commitment is made.
